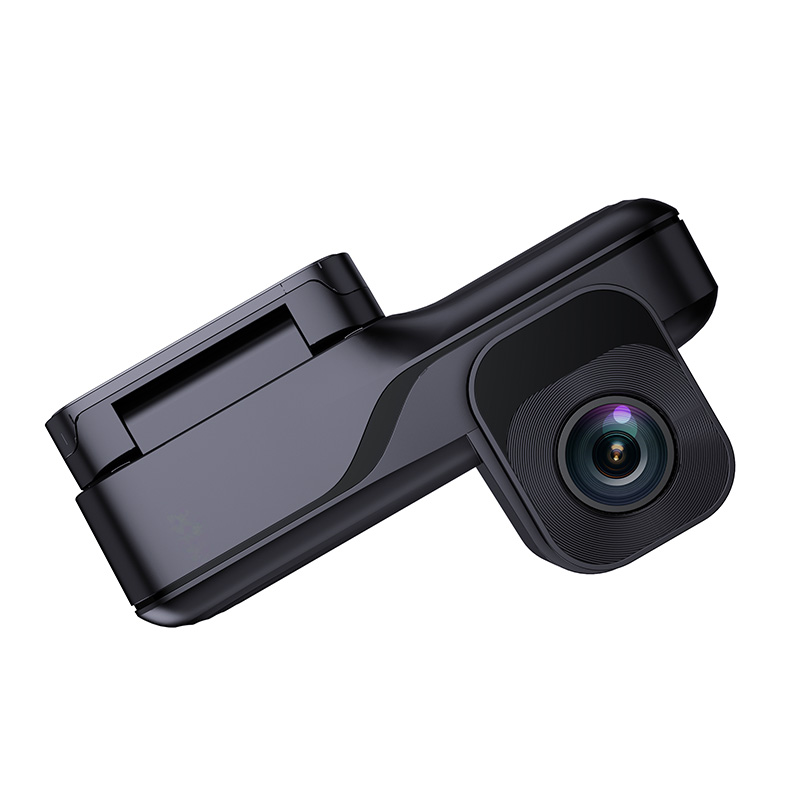

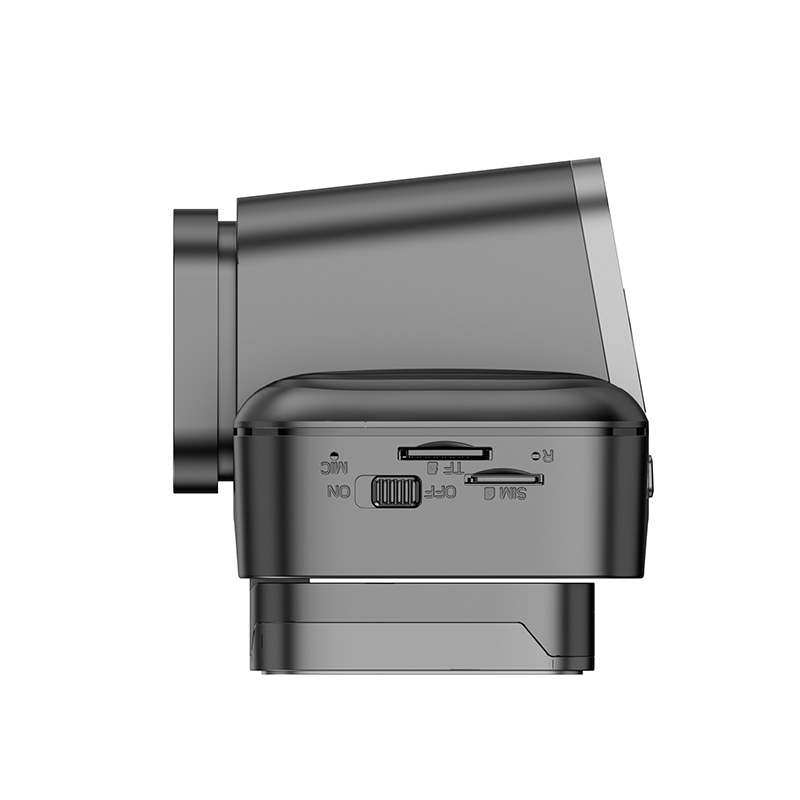

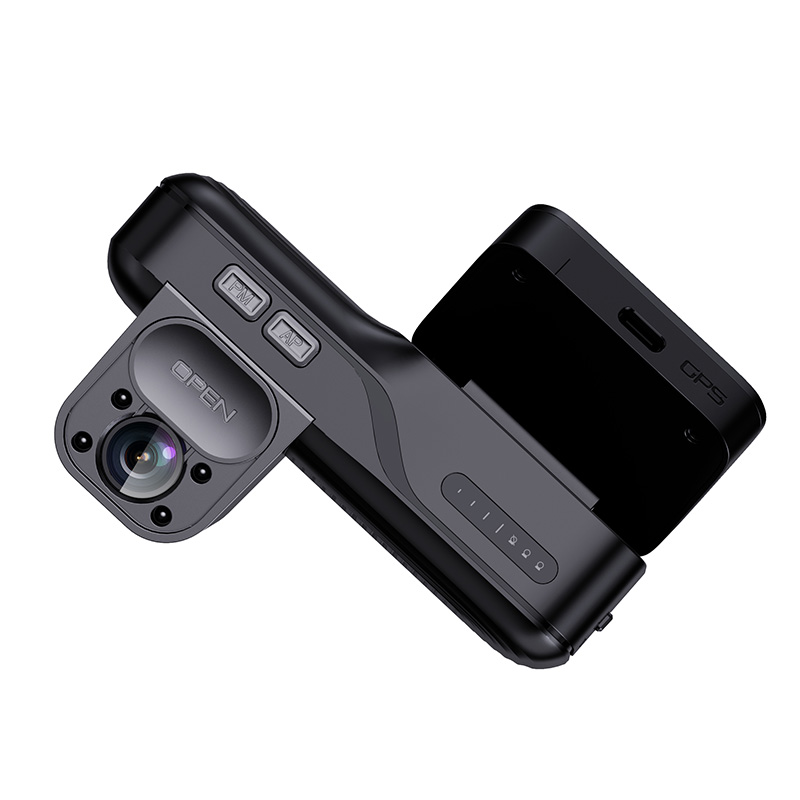

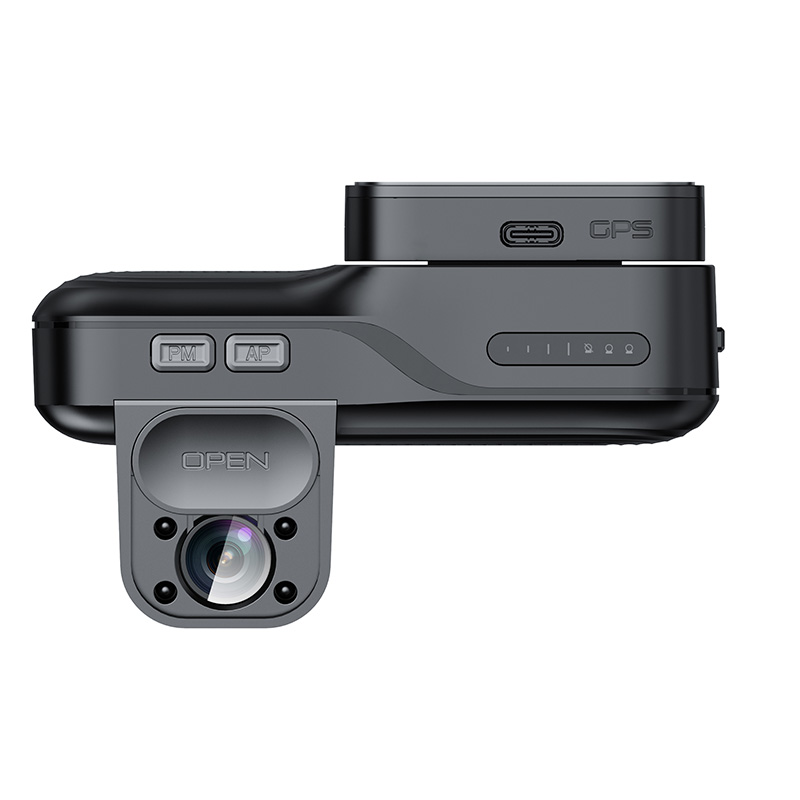

Visinova 4G Dual Lens Dashcam（ADG-005）

Category

Item

Parameter

Main Controller

Model

ADG-005

System

Chipset

T32

Image Sensor

Sensor

Dual SC235, 2MP 1080P CMOS Sensor, 1/2.9"

Video

Resolution & Frame Rate

2304×1296 @ 25fps; 1920×1080 @ 15fps

Video Compression

H.264 / H.265

Detection Sensor

Sensors

Front/Rear 24GHz millimeter wave radar, G-sensor

Privacy Mode

Privacy Mode

Supported (privacy button: disables recording and mutes audio when activated)

AP Mode

AP Mode

Interior camera: 940nm IR night vision; Exterior camera: all-metal fog-resistant housing

Night Vision

Night Vision

Custom low-power 4G module with GPS

4G Module

4G Support

Supported, built-in GPS; OSD displays latitude/longitude and speed; APP shows location; no track recording

Supported Regions

US, Europe, Japan, China — full-band 4G

Network

Network Protocols

TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P

SIM Card

Nano SIM

Lens

Viewing Angle

Front lens: 120° (horizontal); Interior lens: 145° (horizontal)

Power Supply

Power Input

Hardwire via step-down cable (upgradeable to OBD step-down cable)

Wake/Sleep Time

Timing Options

5s / 10s / 20s / 30s

Connection Method

Setup Methods

Bluetooth, QR code scanning, audio

Audio

Audio Coding

AAC / G.726

MIC Sensitivity

High sensitivity: -38dB

Two-Way Talk

Full-duplex intercom supported

Function

Event Alarm

Front/rear radar, G-sensor

Buttons

Power toggle switch, reset button

Indicators

Status LED (red/blue), AP LED, privacy LED, 4G signal LED (4 LEDs total)

Storage

Supports TF Card 4GB – 64GB, plus cloud storage

Video Playback

Event list playback and cloud storage playback

APP

UBOXPRO

Working Environment

Operating Temperature

-25°C ~ +70°C (Sentinel Mode)

Operating Humidity

≤ 80% RH
