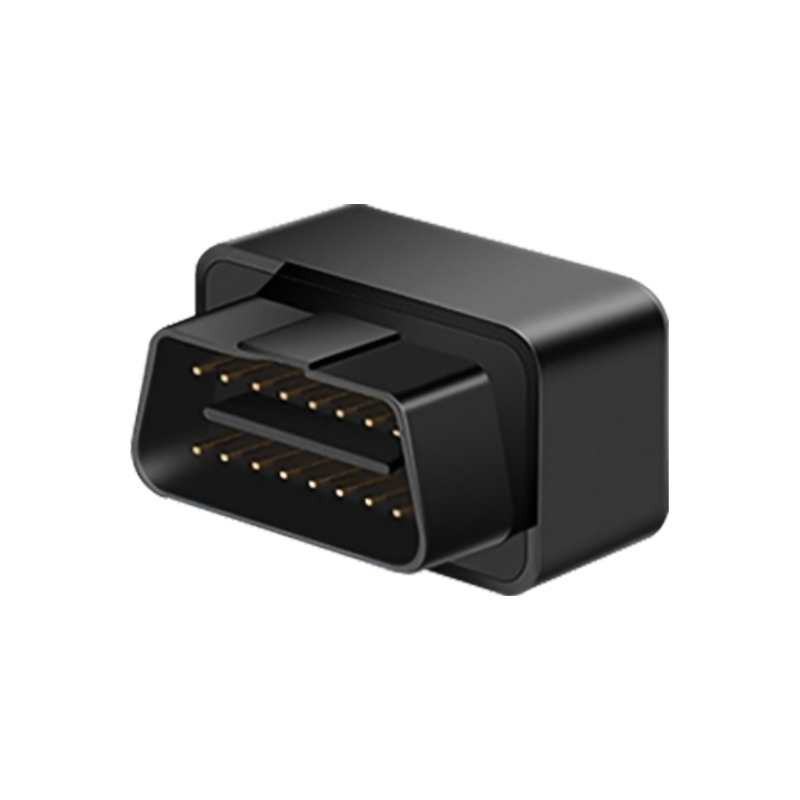

Visinova 4G OBD GPS Tracker （ATG-501）
✅ Real-time location tracking, playback
✅ Power outage alarm, Speeding alarm Vibration Alarm, Fence Alarm
✅ Small size, easy to install without wiring
✅ Blind spot compensation, curve compensation
✅ Management vehicles or Fleet
Specification | Parameters |
Device Dimensions | 50.5*42*34.5mm (W*H*D) |
Device Weight | 44.5g (including battery) |
Built-in Battery | 100mAH (3.7V) |
Operating Voltage | 12-36V DC |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -20°C to +70°C |
Sensor | Precision vibration sensor |
Frequency Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; GSM/GPRS/EDGE 850/900/1800/1900MHz |
Module Model | SIMCOM-A7670SA |
RMSE | S degrees |
Dynamic Output Range | -15~-108dBm |
Receive Sensitivity | -107dBm |
Maximum Frequency Error | ±0.1ppm |
Sensitivity - Cold Start | -147dBm |
Sensitivity - Hot Start | -156dBm |
Sensitivity - Reacquisition | -160dBm |
Sensitivity - Tracking | -162dBm |
Positioning Accuracy | <5m |
Time to First Fix | Cold Start: 32s average |
LTE 4G Antenna | Built-in |
GPS Antenna | Built-in |
LED Indicator | Power, status indication |
Transmission Protocol | TCP |
Power Detection | Alarm upload when main power is disconnected |
Data Reporting | Real-time GPS data update, supports customer customization |
Geo-fencing | TBD |
Driving Behavior Detection | Overspeed alarm when vehicle speed exceeds set limit |
GPS Data | Real-time positioning update |
Vibration Alarm | Vibration alarm when vehicle is in armed state |
